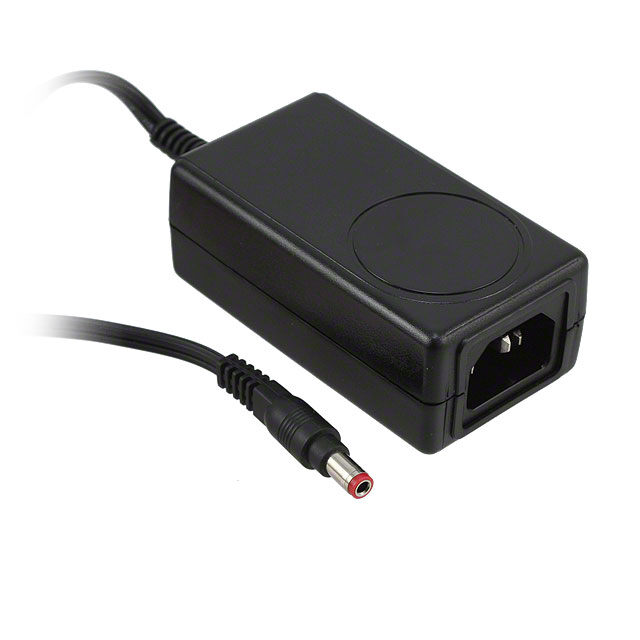

MENB1020 Universal 20 Watt Series Medical Switch-Mode Power Supply 3Year Warranty •100-240VACUniversalInputRange •MeetsEISA2007,CECEfficiencyLevelV, EU(EC)No278/2009PhaseII •Desktop&WallPlugStyles •5Vto48VSingleOutputModels,upto20W •ModifiedandCustomDesignsAvailable •RegulatedOutputwithLowRipple •Impact-ResistantPolycarbonateEnclosure •NoloadPowerConsumption<0.3W •LimitedPowerSource •CertifiedtoUL/EN60601-1,3rd Edition, 2MOPP Isolation RoHS Specifications AllSpecificationsaretypicalatnominalinput,fullloadat25°Cunlessotherwisestated. ACInput 100-240Vac,-/-10%, 47-63Hz,1∅ MTBF 100,000hours(calculated) InputCurrent 100Vac: 0.5A Hold-upTime 18msmin.@115Vac,60msmin.@230Vac InrushCurrent Inrushlimitingprovided,60Apeak OverloadProtection HiccupMode InputFuse InternalPrimaryCurrentFuseprovided: 3.15A,250Vac ShortCircuitProtection HiccupMode Efficiency MeetsEISA2007,CECEfficiencyLevelV, Topology Switching–FixedFrequencyFlyback EU(EC)No278/2009PhaseII OutputVoltage Seechart SafetyStandards EN/IEC/CSA/UL60601-1,3rdEdition OutputPower Seechart EMC,Radiated&Conducted Seechartbelow RippleandNoise 1%pk-pkmax.,20MHzBW DielectricWithstand Input-Output:5,656VDC, Input-Ground:1,500Vac,Output-Ground:500Vdc Line&LoadVoltageRegulation Line:+/-1%,Load:+/-5% OperatingTemperature 0°to40°C,noderating MinimumLoad Notrequired StorageTemperature -30to+85°C TransientResponse 500usmax,50%loadstep RelativeHumidity 5%to95%,non-condensing CaseDimensions 84X47X32mm. Seeoutlinedrawing Altitude 0to10,000ft CaseMaterial Black94V0Polycarbonate Turn-onTime 2secmax,115/230Vac Weight 150g OutputCable 5V–9Voutputs: #18AWG(SPT-1),1500mm,2conductor 12V–48Voutputs:#20AWG(UL1185),1500mm,2conductor OutputConnector 2.5mmbarreltype(Ault#3),centercontact(+) EMCSpecifications ConductedEmissions EN55011ClassB,FCCPart15,ClassB. RadiatedEmissions EN55011ClassB,FCCPart15,ClassB. LineFrequencyHarmonics EN61000-3-2,ClassA VoltageFluctuations/Flicker EN61000-3-3 StaticDischargeImmunity EN61000-4-2,6kVContactDischarge,8kVairdischarge RadiatedRFImmunity EN61000-4-3,3V/m. EFT/BurstImmunity EN61000-4-4,2kV/5kHz. LineSurgeImmunity EN61000-4-5,1kVdifferential,2kVcommon-mode ConductedRFImmunity EN61000-4-6,3Vrms PowerFrequencyMagneticFieldImmunity EN61000-4-8,3A/m VoltageDipImmunity EN61000-4-11,CriteriaA ______________________________________________________________________________________________________________________________ 1of2 SLPowerElectronicsCorp•6050KingDrive Ventura,CA93003•Phone805.486.4565•Fax858.712.2040•Email:info@slpower.com•www.slpower.com

MENB1020 Universal 20 Watt Series IMTEedSicwaitlcShwMitochdeMPoodweeProSwueprpSlyupply 3YearW3aYrreanatryWarranty ModelNumber Volts(V) OutputCurrent(max) MaxWatts Ripple(Vp-pmax) MENB1020A0303F01 3.3V 3.00A 9.9W 50mV MENB1020A0503F01 5V 3.00A 15.0W 50mV MENB1020A0603F01 6V 2.50A 15.0W 60mV MENB1020A0703F01 7.5V 2.00A 15.0W 75mV MENB1020A0903F01 9V 2.00A 18.0W 90mV MENB1020A1203F01 12V 1.50A 18.0W 120mV MENB1020A1403F01 14V 1.20A 16.8W 140mV MENB1020A1503F01 15V 1.20A 18.0W 150mV MENB1020A1803F01 18V 1.00A 18.0W 180mV MENB1020A2403F01 24V 0.75A 18.0W 240mV MENB1020A4803F01 48V 0.40A 19.2W 440mV Notes: Partnumbersaboveinclude#3outputconnectorandIEC320C14groundedinputreceptacle. Seebelowforotheroptions. Model NumberKey MENB 1 020AVV03 F 01 Model "01"=Standard. "02"andhigherindicatesamodifiedmodel. InputConnector: "F"=IEC320C14grounded,Otheroptionsavailable,seebelow OutputConnector: "03"=2.5mm BarrelTypeConnector. Otheroptionsavailable,contactfactory. OutputVoltage: "05"=5Vdc,"12"=12Vdc,"24"=24Vdc,etc. Model "A"=OriginalConfiguration OutputPower: "020"=20Watts #ofOutputs "1"=SingleOutput ProductFamily: "M"=Medical,"E"=External,"NB"=ModelSeriesDesignator ACInputReceptacleOptions OutputConnector Desktop Wall-Plug IEC320-C14 IEC320-C18 IEC320-C8 N.America N.America Europe United Australia ClassI ClassII ClassII Japan Japan Kingdom Grounded Ungrounded "Shaver" Interchangable Fixed Fixed Fixed Fixed (F) (Q) (N) (B) (C) (M) (G) (H) Notes: 1. Fordesktopoptions,chooseapplicableletterabove. Notes: 1.Ault#3Connector,centercontact(+). 2. ForWall-Plugoptions,choosetheapplicableletteraboveandtheunitwillbefittedwith 2.ConnectorisSwitchcraft760plugorequivalent. thereceptaclechosen. TheN.A.bladeversion(B)willbeaninterchangeableblade. MatingconnectorisSwitchcraft712Aorequivalent. Theotheroptions(C),(M),(G),and(H)willbefixedbladesmoldedinthecase. 3.Otherconnectoroptionsareavailable. Contactyourlocal 3. BladeKitisavailablewhichwillincludeoneeachofaEU,UK,andAustralianblade. Kitpart# SLPowerRepresentativefordetails. isKT1027K. Thesecanbeusedwiththe(B)version,toallowbladestobechanged. OutlineDrawing DATE CODE DATE CODE DesktopStyle Wall-plugStyle(Option“B”shown) DataSheet©2015SLPowerElectronicsCorp. Theinformationandspecificationscontainedhereinarebelievedtobecorrectatthetimeofpublication. Rev.12-12-2015 However,SLPoweracceptsnoresponsibilityforconsequencesarisingfromreproductionerrorsorinaccuracies. Specificationsaresubjecttochangewithoutnotice. ______________________________________________________________________________________________________________________________ 2of2 SLPowerElectronicsCorp•6050KingDrive Ventura,CA93003•Phone805.486.4565•Fax858.712.2040•Email:info@slpower.com•www.slpower.com
