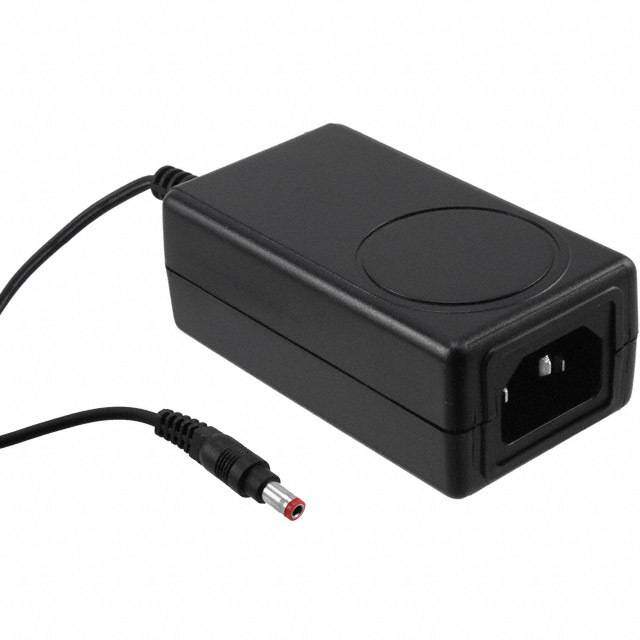

MENB1010 Universal 10 Watt Series Medical Switch-Mode Power Supply 3 Year Warranty •100-240VacUniversalInputRange •MeetsEISA2007,CECEfficiencyLevelV, EU(EC)No278/2009PhaseII •Desktop&WallPlugStyles •5Vto24VSingleOutputModels,upto12W •ModifiedandCustomDesignsAvailable •RegulatedOutputwithLowRipple •Impact-ResistantPolycarbonateEnclosure •NoloadPowerConsumption<0.3W •LimitedPowerSource •CertifiedtoUL/EN/IEC60601-1,3rd Edition, 2xMOPP Isolation RoHS Specifications AllSpecificationsaretypicalatnominalinput,fullloadat25Cunlessotherwisestated. ACInput 100-240Vac,-/-10%, 47-63Hz,1 MTBF >100,000hours(calculated) InputCurrent 100Vac: 0.27A Hold-upTime 18mSmin.@115Vac,60mSmin.@230Vac InrushCurrent 60Apeakmaxat264Vac OverloadProtection HiccupMode InputFuse InternalPrimaryCurrentFuseprovided(1A,250Vacrated) ShortCircuitProtection HiccupMode Efficiency MeetsEISA2007,CECEfficiencyLevelV, Topology Switching–FixedFrequencyFlyback EU(EC)No278/2009PhaseII OutputVoltage Seechart SafetyStandards EN/IEC/CSA/UL60601-1,3rdEdition OutputPower Seechart EMC,Radiated&Conducted SeeChartbelow RippleandNoise 1%pk-pkmax.,20MHzBW DielectricWithstand Input-Output:2MOPP, Input-Ground:1MOPP,Output-Ground:500Vac Line&LoadVoltageRegulation Line:+/-1%,Load:+/-5% OperatingTemperature 0to40C,noderating MinimumLoad Notrequired StorageTemperature -30to+85C CaseMaterial Black94V-0Polycarbonate RelativeHumidity 5%to95%,non-condensing CaseDimensions 84x47x32mm. Seeoutlinedrawing OperatingAltitude -500to10,000ft Weight 110g Non-operatingAltitude -500to40,000ft OutputCable #20AWG(UL2468),1500mm,2conductor OutputConnector 2.5mmbarreltype(Ault#3),centercontact(+) Otheroptionsavailable,contactthefactoryfordetails EMCSpecifications ConductedEmissions EN55011ClassB,FCCPart15,ClassB. RadiatedEmissions EN55011ClassB,FCCPart15,ClassB. LineFrequencyHarmonics EN61000-3-2,ClassA VoltageFluctuations/Flicker EN61000-3-3 StaticDischargeImmunity EN61000-4-2,6kVContactDischarge,8kVairdischarge RadiatedRFImmunity EN61000-4-3,3V/m. EFT/BurstImmunity EN61000-4-4,2kV/5kHz. LineSurgeImmunity EN61000-4-5,1kVdifferential,2kVcommon-mode ConductedRFImmunity EN61000-4-6,3Vrms PowerFrequencyMagneticFieldImmunity EN61000-4-8,3A/m VoltageDipImmunity EN61000-4-11,CriteriaA ________________________________________________________________________________________________________________________________ 1of2 SLPowerElectronicsCorp6050KingDrive Ventura,CA93003Phone805.486.4565Fax858.712.2040Email:info@slpower.comwww.slpower.com

MENB1010 Universal 10 Watt Series Medical Switch-Mode Power Supply 3 Year Warranty ModelNumber Volts(V) OutputCurrent(max) MaxWatts Ripple(Vp-pmax) MENB1010A0503F01 5V 2.00A 10.0W 50mV MENB1010A0603F01 6V 2.00A 12.0W 60mV MENB1010A0703F01 7.5V 1.60A 12.0W 75mV MENB1010A0903F01 9V 1.10A 10.0W 90mV MENB1010A1203F01 12V 1.00A 12.0W 120mV MENB1010A1503F01 15V 0.80A 12.0W 150mV MENB1010A1603F01 16V 0.75A 12.0W 160mV MENB1010A1803F01 18V 0.67A 12.0W 180mV MENB1010A2403F01 24V 0.50A 12.0W 240mV MENB1010A4803F01 48V 0.25A 12.0W 480mV Notes: Partnumbersaboveinclude#3outputconnectorandIEC320C14groundedinputreceptacle. Seebelowforotheroptions. Model NumberKey MENB 1 010AVV03 F01 Model "01"=Standard. "02"andhigherindicatesamodifiedmodel. InputConnector: "F"=IEC320C14grounded,Otheroptionsavailable,seebelow OutputConnector: "03"=2.5mm BarrelTypeConnector. Otheroptionsavailable,contactfactory. OutputVoltage: "05"=5Vdc,"12"=12Vdc,"24"=24Vdc,etc. Model "A"=OriginalConfiguration OutputPower: "010"=10Watts #ofOutputs "1"=SingleOutput ProductFamily: "M"=Medical,"E"=External,"NB"=ModelSeriesDesignator ACInputReceptacleOptions OutputConnector Desktop Wall-Plug IEC320-C14 IEC320-C18 IEC320-C8 N.America N.America Europe United Australia ClassI ClassII ClassII Japan Japan Kingdom Grounded Ungrounded "Shaver" Interchangable Fixed Fixed Fixed Fixed (F) (Q) (N) (B) (C) (M) (G) (H) Notes: 1. Fordesktopoptions,chooseapplicableletterabove. Notes: 1.Ault#3Connector,centercontact(+). 2. ForWall-Plugoptions,choosetheapplicableletteraboveandtheunitwillbefittedwith 2.ConnectorisSwitchcraft760plugorequivalent. thereceptaclechosen. TheN.A.bladeversion(B)willbeaninterchangeableblade. MatingconnectorisSwitchcraft712Aorequivalent. Theotheroptions(C),(M),(G),and(H)willbefixedbladesmoldedinthecase. 3.Otherconnectoroptionsareavailable. Contactyourlocal 3. BladeKitisavailablewhichwillincludeoneeachofaEU,UK,andAustralianblade. Kitpart# SLPowerRepresentativefordetails. isKT1027K. Thesecanbeusedwiththe(B)version,toallowbladestobechanged. OutlineDrawings DesktopStyle Wall-PlugStyle(Option“B”Shown) DataSheet©2014SLPowerElectronicsCorp. Theinformationandspecificationscontainedhereinarebelievedtobecorrectatthetimeofpublication. Rev.4-11-2014 However,SLPoweracceptsnoresponsibilityforconsequencesarisingfromreproductionerrorsorinaccuracies. Specificationsaresubjecttochangewithoutnotice. ________________________________________________________________________________________________________________________________ 2of2 SLPowerElectronicsCorp6050KingDrive Ventura,CA93003Phone805.486.4565Fax858.712.2040Email:info@slpower.comwww.slpower.com
